Description
Brief Introduction
This is a metal case wifi openwrt sim card 4g 5g lte router, it supports both 2.4g and 5.8g wifi, wifi speed is up to 1200Mbps, you just need insert sim card to the sim card slot, then power on, it will provide wifi or LAN network, sometimes requires fill APN in the 4g page of router user interface.
- Support 802.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)
- 5* 10/100/1000Mbps Auto MDI/MDIX LAN/WAN gigabit ports
- 1 USB 3.0 data interface
- 1 Micro TF Card Slot

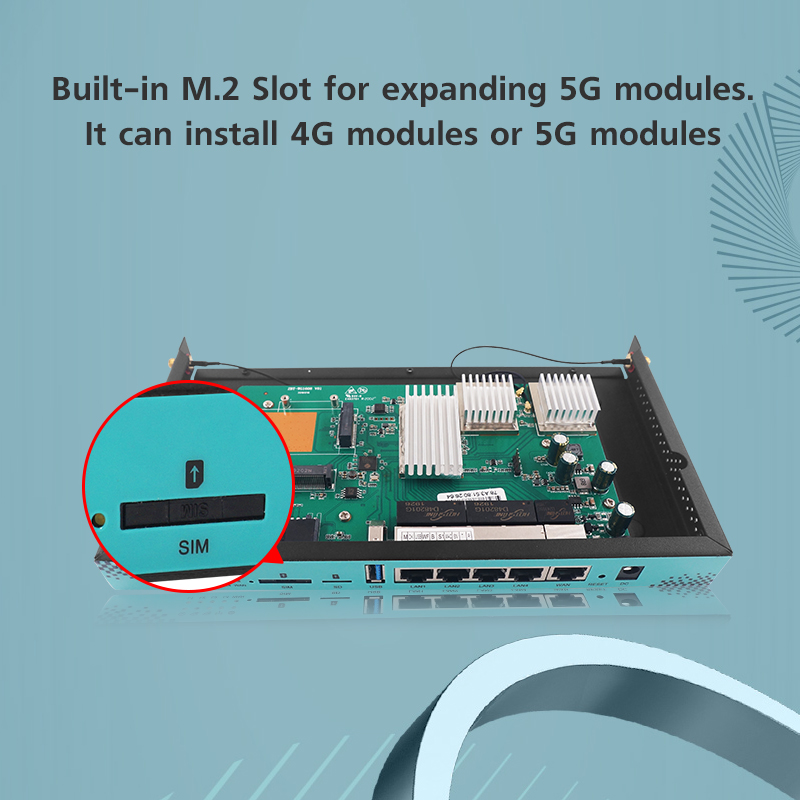

- Built-in USB3.0 MINI-PCIE interface to install 4G modules to support 3G & 4G functions.And also built-in USB3.0 M.2 interface to install 5G module to support3G& 4G&5G function. But can only choose one of two to install in side of router.
- Also support 11AC,dual band 2.4&5.8G.
Features
| Main Chipset | MT7621A (880MHz) |
| 2.4G Chip set | MT7603EN |
| 5.8G Chip set | MT7613AEN |
| RAM | DDR3 256MB （MAX DDR3 512MB） |
| SPI FLASH | 16MB （MAX 32MB） |
| Protocol | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac,IEEE802.11a IEEE 802.3,IEEE 802.3u |
| RT Power | 11n: 16dBm±1dBm
11g: 16dBm±1dBm 11b: 18dBm±1dBm 11a: 18dBm±1dBm 11ac: 17dBm±1dBm |
| Reception Sensitivity | 11N HT20 MCS7: -70dBm
11N HT40 MCS7: -68dBm 11G 54Mbps: -72dBm 11B 11Mbps: -85dBm 11A 54Mbps: -72dBm 11AC VHT20 MCS8: -65dBm |
| Work Channel | 2.4GHz choose: 1-13
5GHz choose: 149,153,157,161,165 |
| Wireless Rate | Max 1200Mbps |
| Work Frequency | 2.4GHz, 5.8GHz |

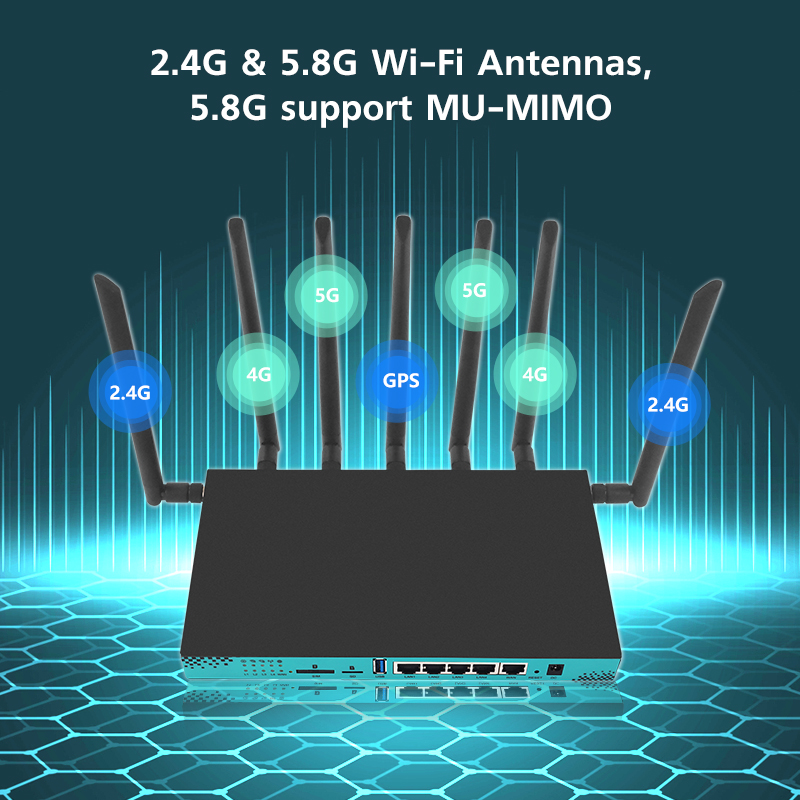

| Antenna | 2* 5dbi high-gain dual-band antennas; 4* 5dbi high-gain 5G antennas or 2* 5dbi high-gain 4G antennas, depend on using 4G or 5G. |

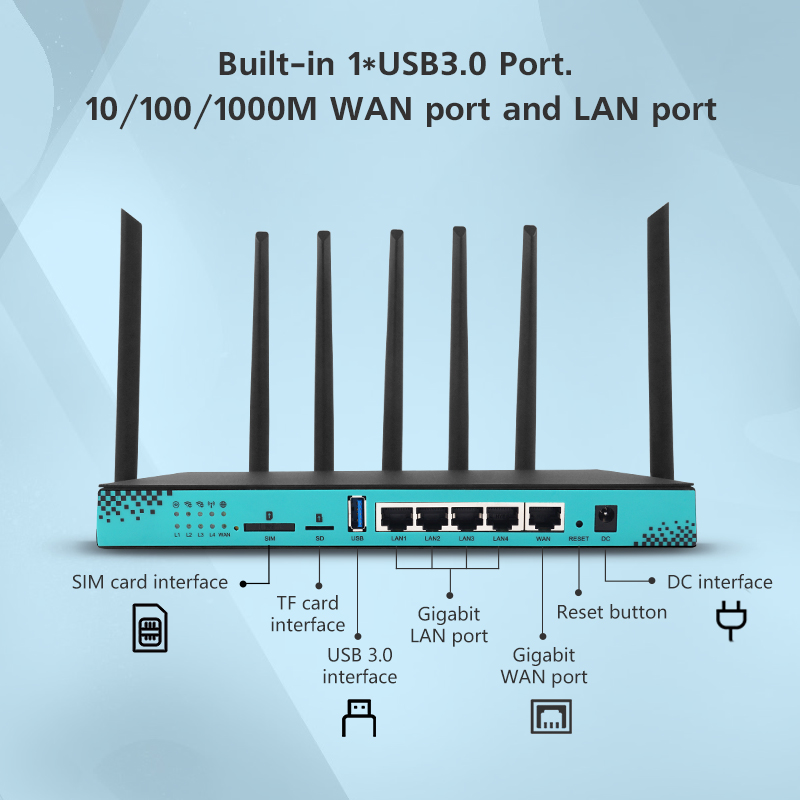

| Interface | Built-in 1* USB3.0 MINI-PCIE interface, 1* USB3.0 M.2 interface, choose either of them to use.
1 *SIM card slot 1 *USB 3.0 port 1 *Micro TF card slot 1* DC interface 1 *10/100/1000M WAN port (Auto MDI/MDIX) |
| 4G/5G | Support |
| LED | Power / 2.4G / 5.8G / 4G or 5G / external network
LAN1 / LAN2 / LAN3 / LAN4 / WAN |
| Button | Reset Button |
| Max Power consumption | < 20W |

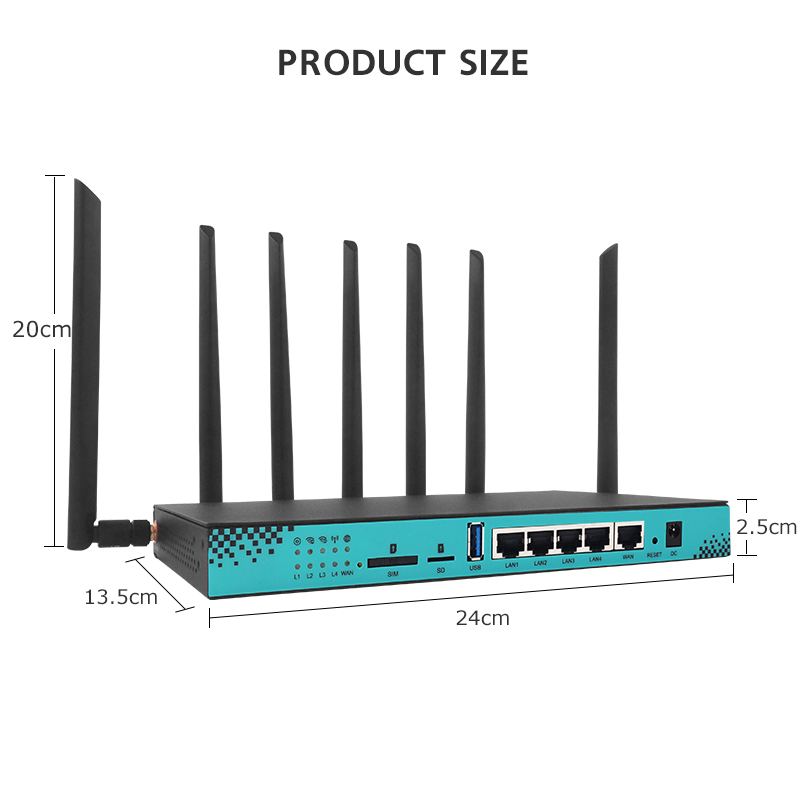

| Dimension（L*W*H） | Product size: 240mm*136mm*25mm |
