Description
outdoor router 5g wifi 6 dual sim card slots
Brief Introduction

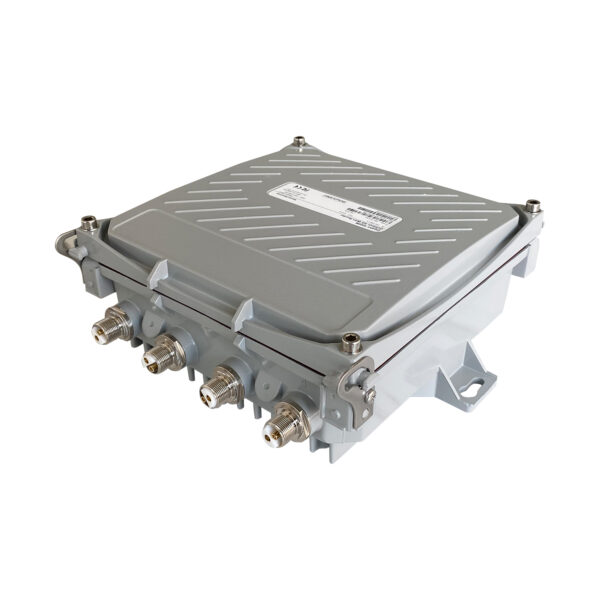

Z8105AX-M2-H is a outdoor router 5g cellular CPE, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
In addition, this product also uses a PHY network interface chip to directly communicate with the 5G module, improving the speed and making its high-speed transmission or reception ability more stable.
It can be customized with 2.5Gbps WAN port.
Related standard specifications:
1).USB3.0/USB2.0 bus standard
2).SIM/USIM interface standard
3).IEEE802.11n/g/b/a/ac/ax
4).IEEE802.3/802.3u/802.ab
5).PCI Express M.2 Specification Rev1.1
6).3GPP R16 5G mobile communication standard
Specification
| RJ45 ports | 1*WAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)
Conforms to IEEE 802.3/802.3u/802.ab. It can be support OEM 2.5Gbps WAN port. |
| 3* LAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)
Conforms to IEEE 802.3/802.3u/802.ab |
|
| SIM interface | 1* Standard SIM interface, supporting SIM/USIM |
| Power interface | DC5.5*2.1MM |
| Button | 1* reset button, 1* MESH button |
| Antennas | Internal 2* omnidirectional 8dbi 2.4G and 4G/5G external antennas |
| Built in 2* omnidirectional 8dbi 5.8G and 4G/5G external antennas
Built in 1* omnidirectional 8dbi 5.8G internal antenna |
Temperature and Humidity
| Working temperature | -20℃ – 60℃ |
| Store temperature | -45℃ – 90℃ |
| Working humidity | 10% – 90%RH Non condensing |
| Store humidity | 5% – 90%RH Non condensing |
