Description
Brief Introduction

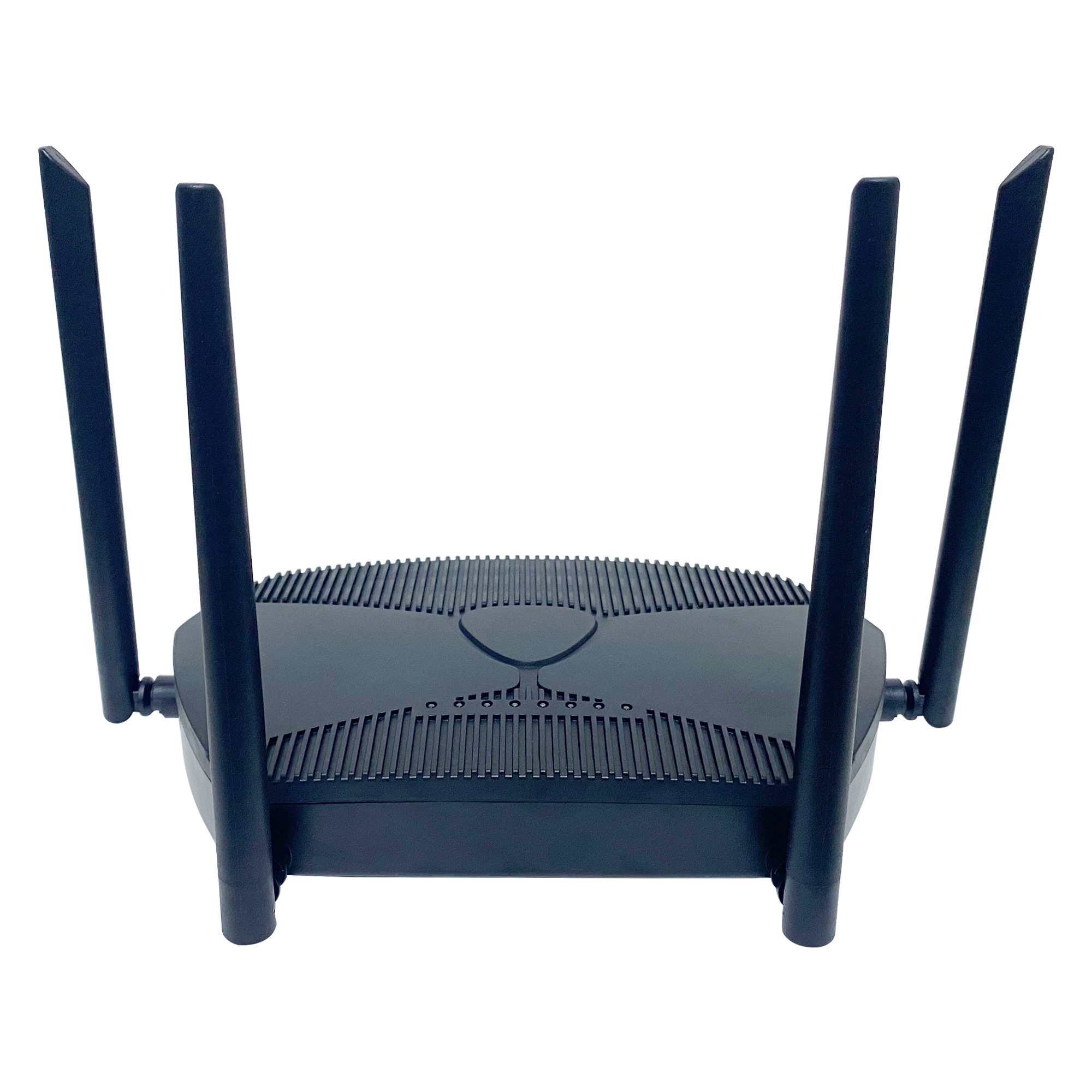

M8103S-E is a wifi6 openwrt router that accesses the Internet through the WAN port, and then shares the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
Relevant standard specifications:
lIEEE802.11n/g/b/a/ac/ax
lIEEE802.3/802.3u/802.ab
lPCI-Express bus standard

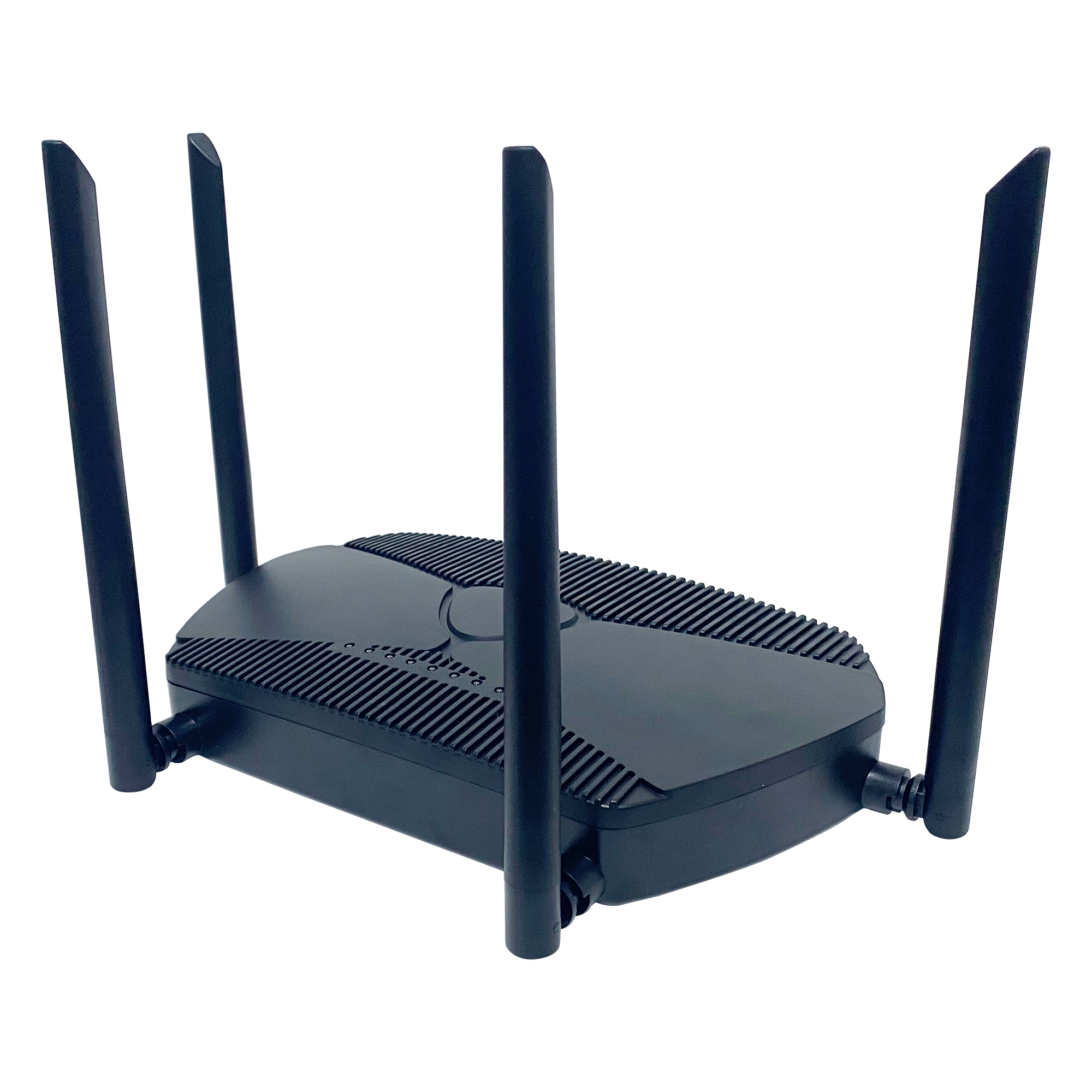

4 x external antennas
Specification
| CPU | MT7981B ARM Cotext-A53 dual core CPU，1.3GHZ main frequency |
| WIFI chipset | MT7976CN IEEE 802.11n/g/b/a/ac/ax,MAX speed 3000Mbps |
| RAM | DDR3 256MB |
| FLASH | Nor Flash 16MB(Optional ) |
| SPI NAND Flash 128MB |

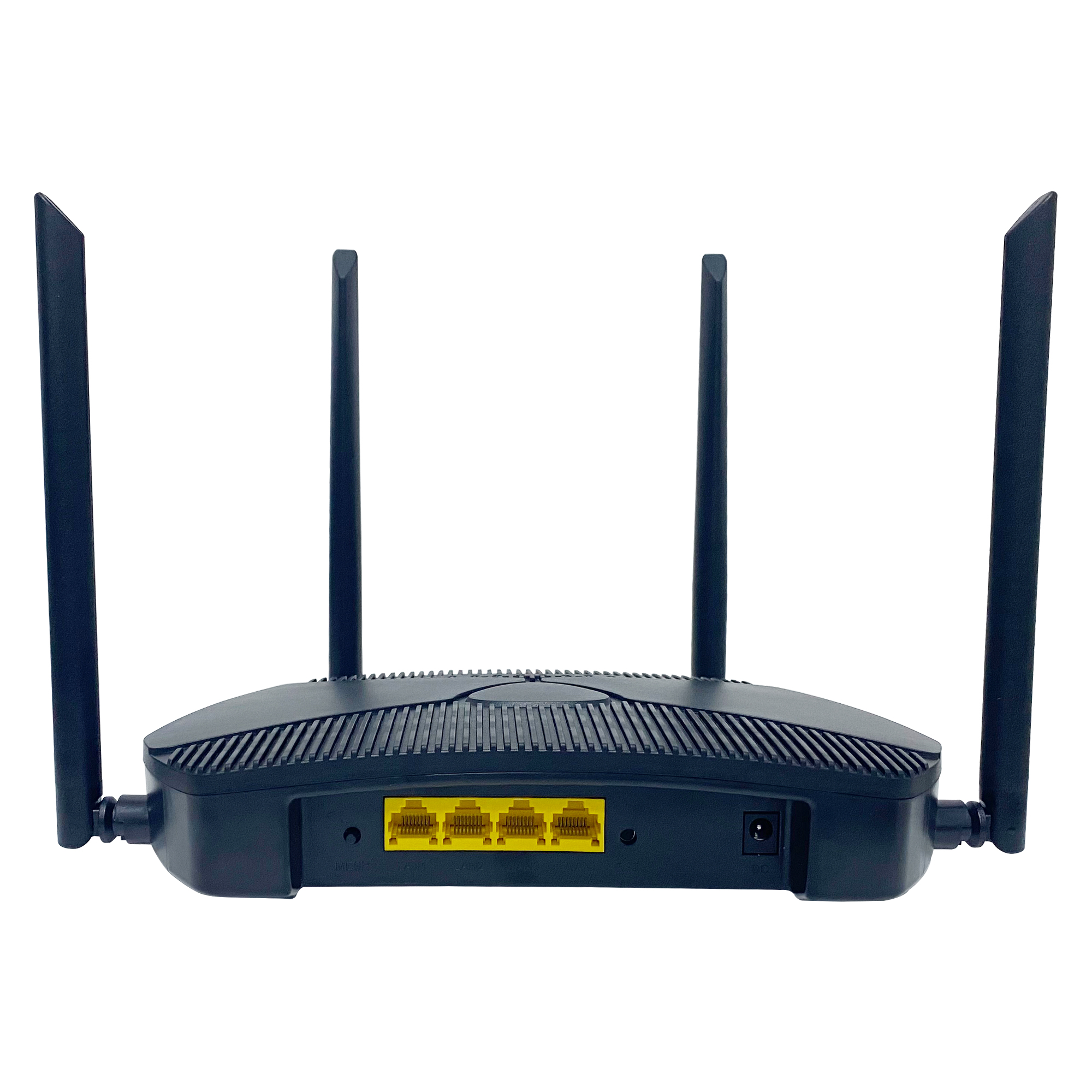

| Interface | 1 WAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u/802.ab |
| 3 LAN ports, 1000Mbps support automatic flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u/802.ab |
|
| Power | DC5.0*2.1MM |
| Button | 1*Reset，MESH *1 |
| Antennas | 2 omnidirectional 5dbi 2.4G antennas |
| 2 omnidirectional 5dbi 5.8G antennas |
LED light definition
| MESH LED | 1. The red light is on during the boot process, the boot is completed, the red light is off and the green light is on
2. Press the mesh button to enter the mesh pairing state, the green light flashes once a second, and the other lights are off 3. The main device network is normal, the green and blue lights are on at the same time (cyan) 4. The MESH connection of the slave device is successful, the green light and the red light are on at the same time (orange) when the distance is far away, the green light and the blue light are on at the same time (cyan) when the distance is suitable |
| WAN LED | Connected to the Internet port is always on, and flashes when there is data communication |
| LAN1 LED | Connected to the Internet port is always on, and flashes when there is data communication |
| LAN2 LED | Connected to the Internet port is always on, and flashes when there is data communication |
| LAN3 LED | Connected to the Internet port is always on, and flashes when there is data communication |
| 2.4G LED | 2.4G WIFI is always on after startup, and flashes when there is data communication |
| 5.8G LED | 5.8G WIFI is always on after startup, and flashes when there is data communication |
| POWR LED | The power indicator light is always on when the power supply is normal, but not on when the power supply is abnormal. |
There are also other cases for the same internal board, same function, you can choose as you like.
More 3000mbps wifi6 openwrt router below:
