Description

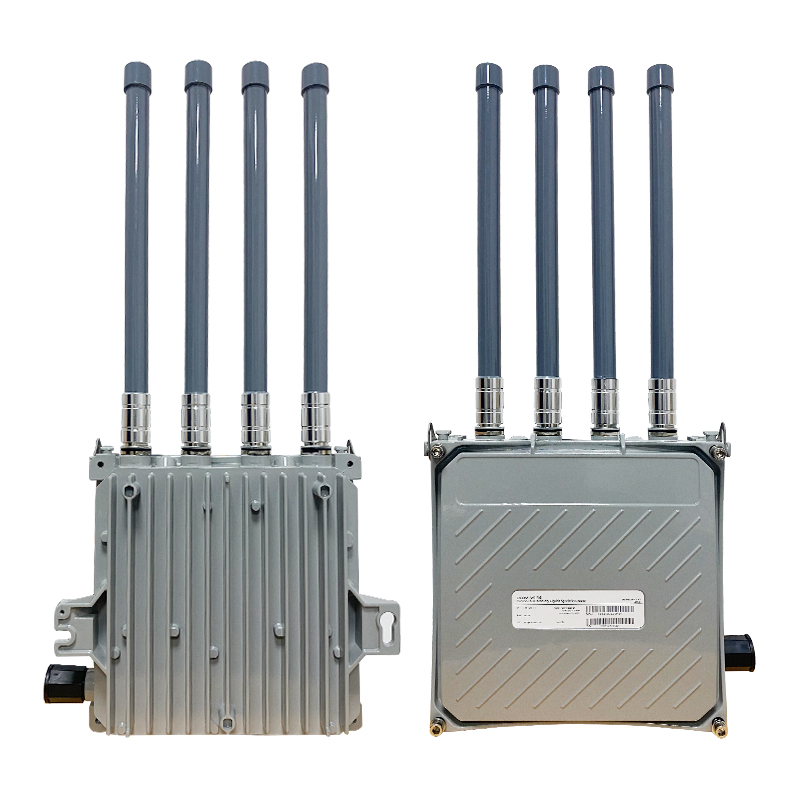

5G outdoor CPE WIFI6
Brief Introduction
WIFI6 5g outdoor CPE, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN. In addition, this product also uses a PHY network interface chip to directly communicate with the 5G module, improving the speed and making its high-speed transmission or reception ability more stable.
It can be customized with 2.5Gbps WAN port.
Specification
| RJ45 ports | 1*WAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)
Conforms to IEEE 802.3/802.3u/802.ab. It can be support OEM 2.5Gbps WAN port. |
| 3* LAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)
Conforms to IEEE 802.3/802.3u/802.ab |
|
| SIM interface | 1* Standard SIM interface, supporting SIM/USIM |
| Power interface | DC5.5*2.1MM |
| Button | 1* reset button, 1* MESH button |
| Antennas | Built in 2* omnidirectional 8dbi 2.4G and 4G/5G external antennas |
| Built in 2* omnidirectional 8dbi 5.8G and 4G/5G external antennas
Built in 1* omnidirectional 8dbi 5.8G internal antenna |
| Processor | MT7981B ARM Cotext-A53 dual-core CPU, 1.3GHZ main frequency |
| WIFI Chip | MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps |
| RAM | DDR3 256MB |
| Flash | SPI NAND Flash 128MB |
