Description
Brief Introduction

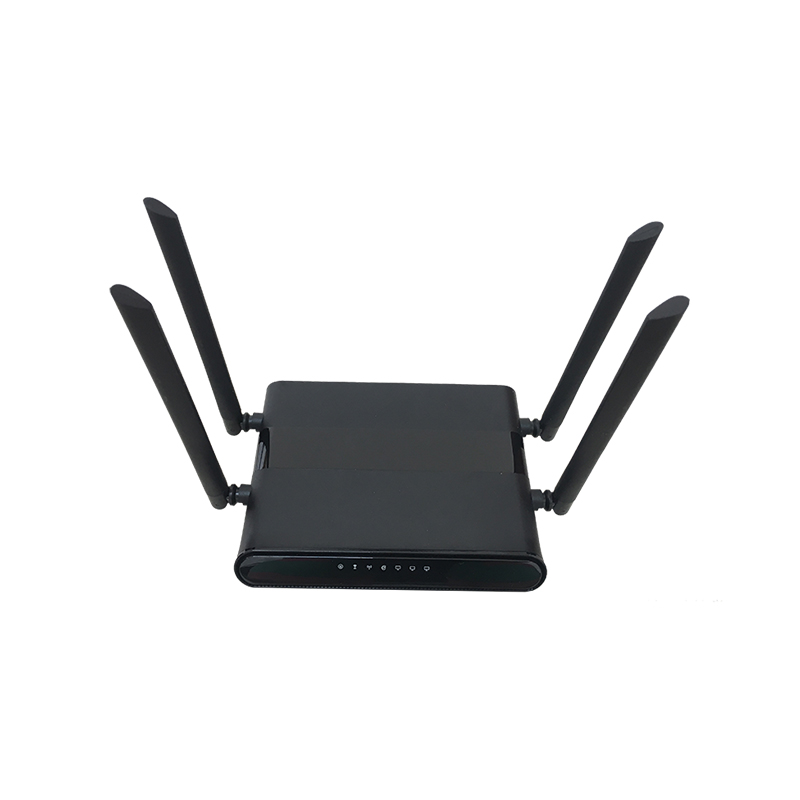

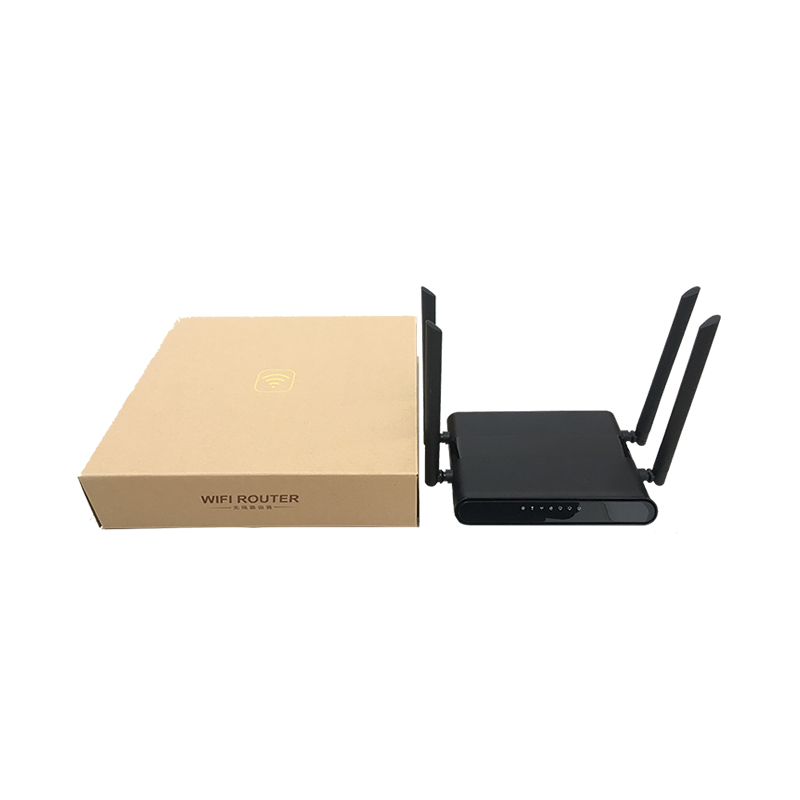

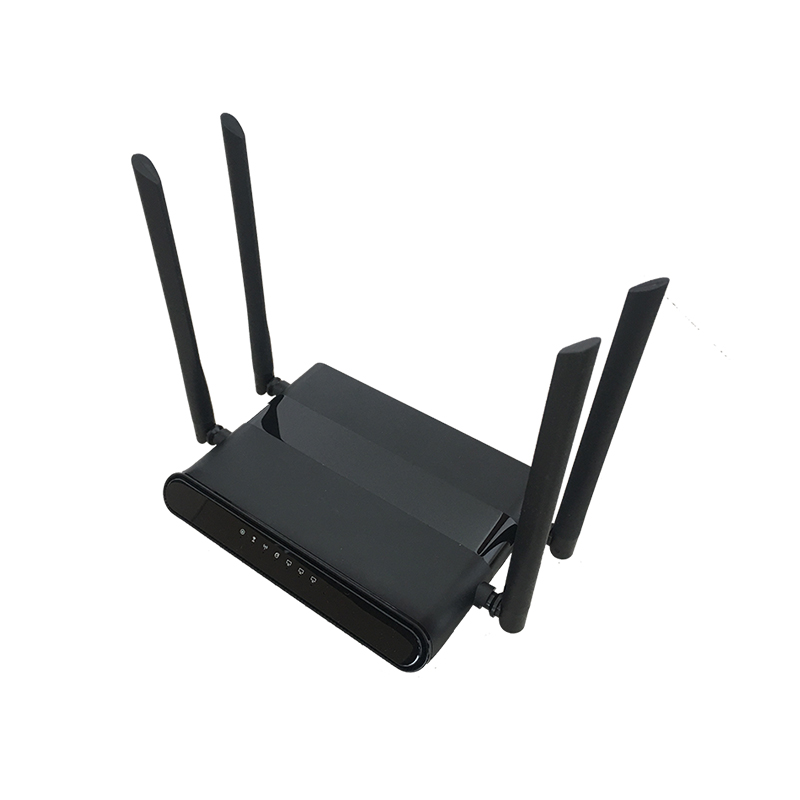

M2807S is 4G cellular router for home use. It accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the wireless WiFi and internet network to user or device.
And also,it supports wired Ethernet. Customers can be connected WAN port by wired Ethernet cable to share wireless WiFi and wired network to user or device.
Specification

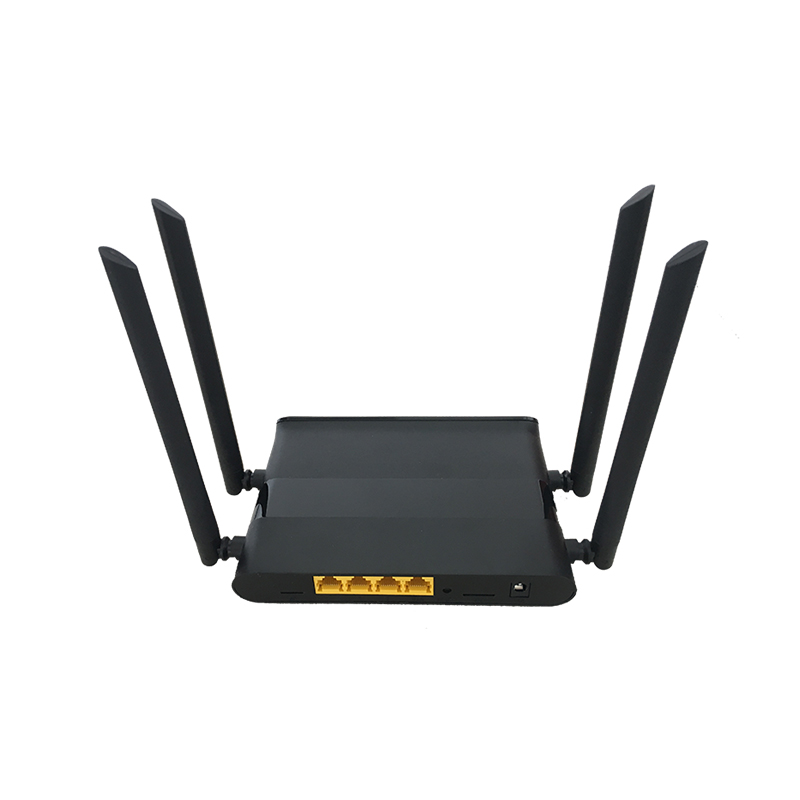

| Network port | 1*WAN,100Mbps support automatic flip (Auto MDI/MDIX)
IEEE 802.3/802.3u, 802.11n/g/b |
| 3*LAN,100Mbpssupport automatic flip (Auto MDI/MDIX)
IEEE 802.3/802.3u,802.11n/g/b |
|
| SIM card slot | 1*SIM slot, support SIM/USIM |
| Power | DC5.0*2.1MM port |
| Reset button | 1* reset button |
| Antenna | 2*2.4G 5dbi internal Omnidirectional antennas |
| 2*4G 5dbi internal Omnidirectional antennas | |
| 4G module interface | It is directly SMT LCC+LGA 4G module to support 3G&4G function. |
| 4G bands | FDD:B1/3/5/7/8/20 TDD:B38/40/41
WCDMA: B1/5/8 GSM: 850/900/1800MHz |
| Processor | Adopt MT7628AN plan,MIPS24KEc architecture CPU,main frequency is up to 580MHZ |
| 2.4G WIFI chip | MT7628AN chipset integrates 2.4G WIFI function, rated up to 300Mbps |
| RAM | DDR3 64MB |
| FASH | Nor Flash 8MB |
| Do not support NAND Flash |
LED Definition
| WAN LED | always light, and it will flash when there is data communication |
| LAN1 LED | always light, and it will flash when there is data communication |
| LAN2 LED | always light, and it will flash when there is data communication |
| LAN3 LED | always light, and it will flash when there is data communication |
| 2.4G WIFI LED | Turn on 2.4G WIFI function,the indicator will always light, and it will flashes when there is data communication, Turn off 2.4G WIFI or 2.4G WIFI function fails, the indicator will be off. |
| 5.8G WIFI LED | Turn on 5.8G WIFI function,the indicator will always light, and it will flashes when there is data communication
If turn off 5.8G WIFI or 5.8G WIFI function fails, the indicator will be off. |
| 4G LED | Fast flashing (on and off once in 600ms):No SIM card or network registration failed
Slow flashing (once at 3000ms and off once at 75ms):Standby mode Fast flashing (on and off once in 75ms):Dialing is normal, data link is established Constant light:Sleep state |
| Power LED | It is always on when the power is connecting, and it will be off when the power supply is faulty or is not connected to the power |
