Description

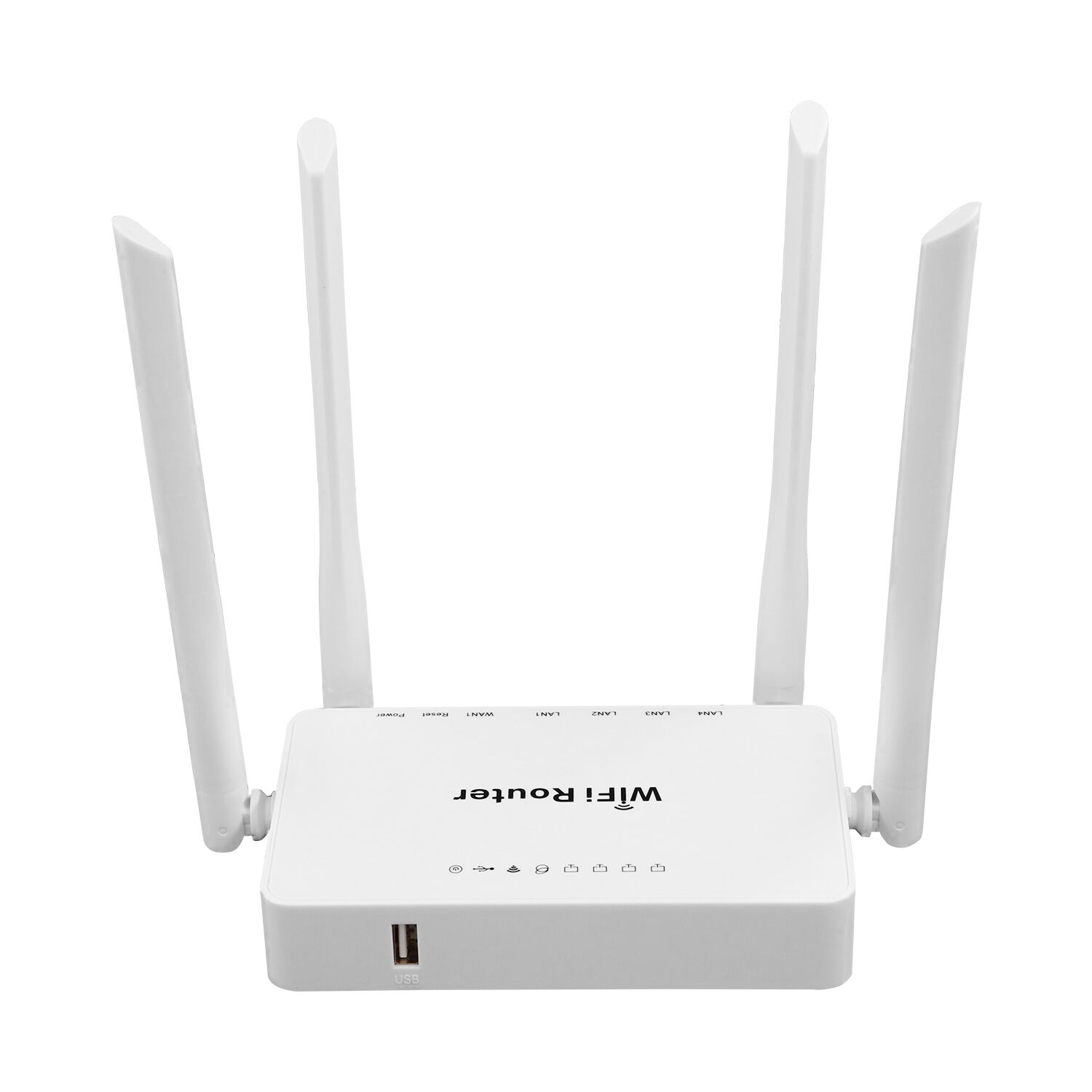

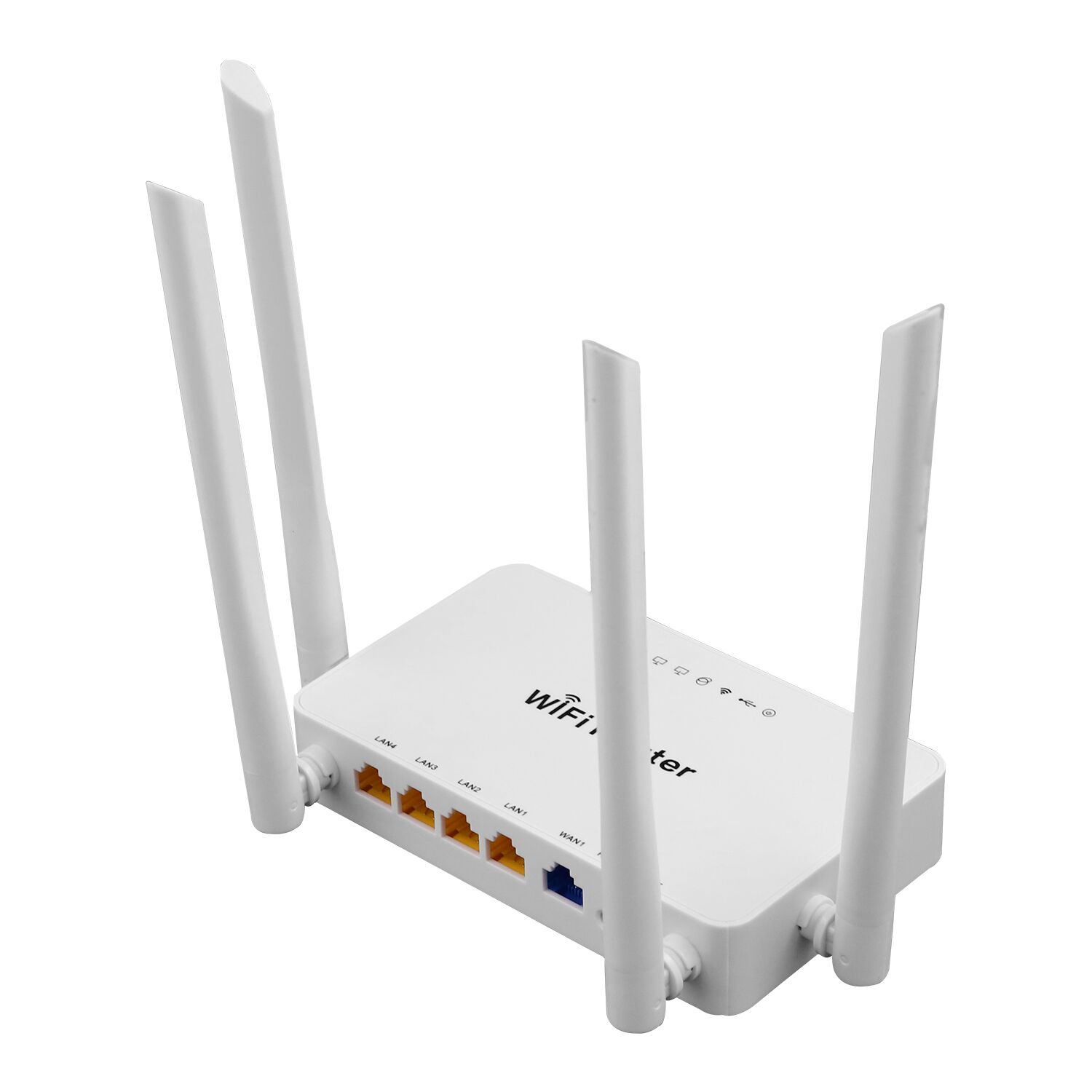

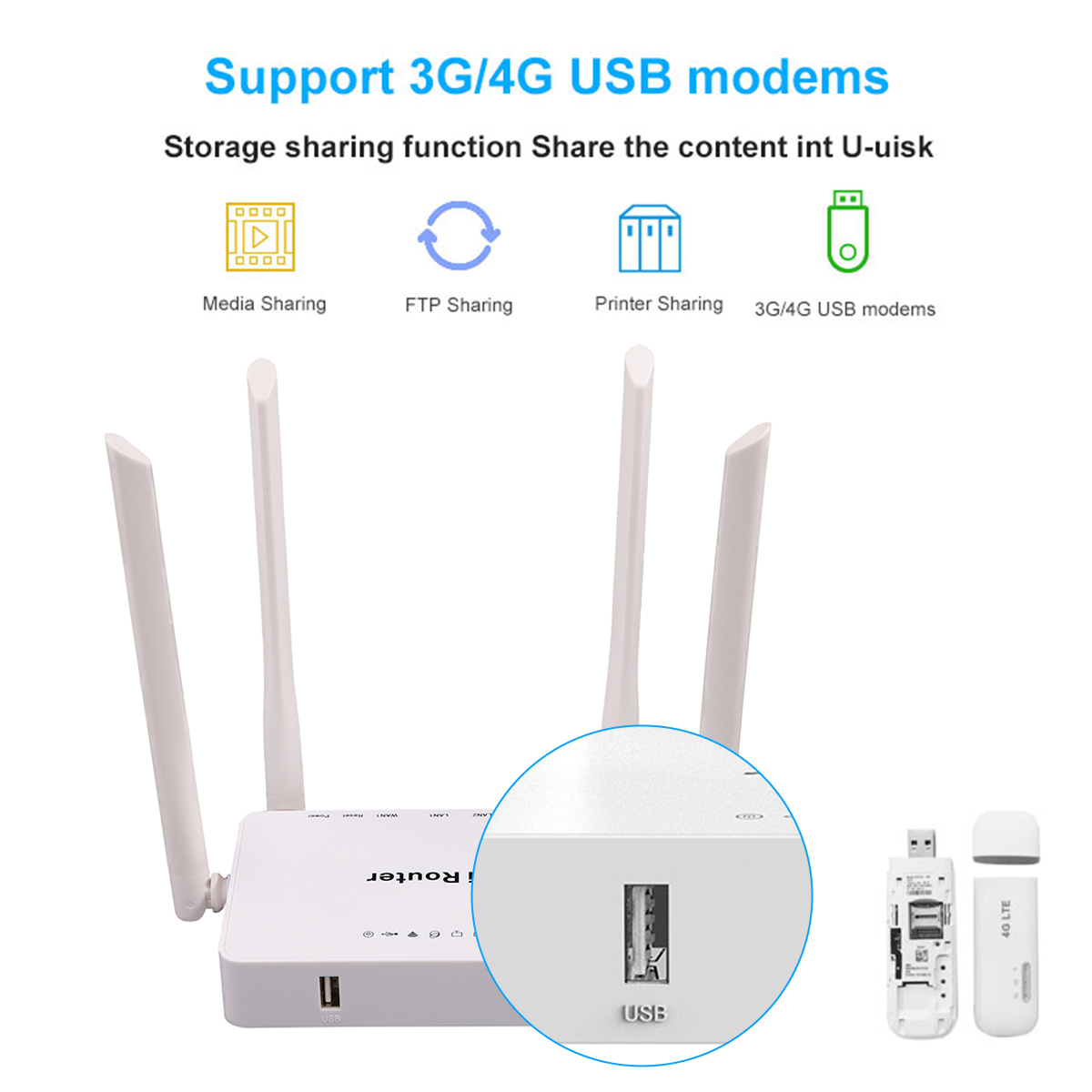

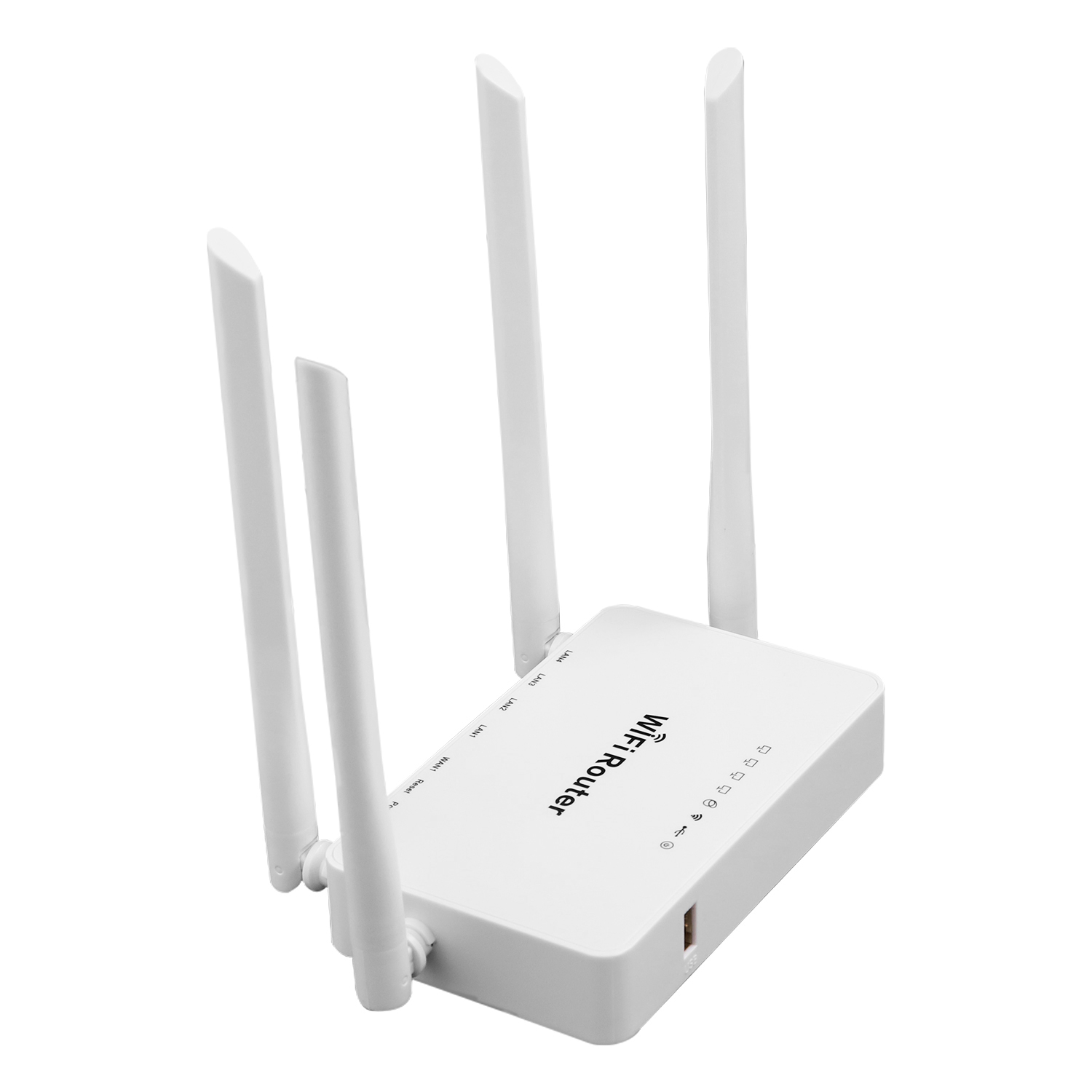

This is a plastic case simple design low cost 2.4G wifi router, wifi router with 4g usb dongle supported, the most popular function is that it supports to use with 4g usb dongle.
- MT7620N CPU, 580Mhz, powerful performance and work stably；
- Support IEEE 802.11b/g/n wireless network protocol.
- Support IEEE 802.3, IEEE 802.3u standard.1* 10/100M Auto-MDI/MDIX WAN port; 4 *10/100MAuto-MDI/MDIX LAN ports.
- Wireless rate up to 300Mbps.
Features:
| Main CPU | MT7620N/580MHZ |
| RAM | SDRAM 64MB （Max SDRAM 64MB） |
| FLASH | SPI 8MB （Max8MB） |
| Protocol | IEEE802.11n/802.11g/802.11b/802.3/802.3u |
| WiFi Rate | Max 300Mbps |
| Work Frequency | 2.4GHZ |
| RT Power | 11N: 15dBm±2dBm
11G: 15dBm±2dBm 11B: 18dBm±2dBm |
| Reception Sensitivity | 11N: -68dBm
11G: -70dBm 11B: -82dBm |
| Antenna | 4 external antennas |

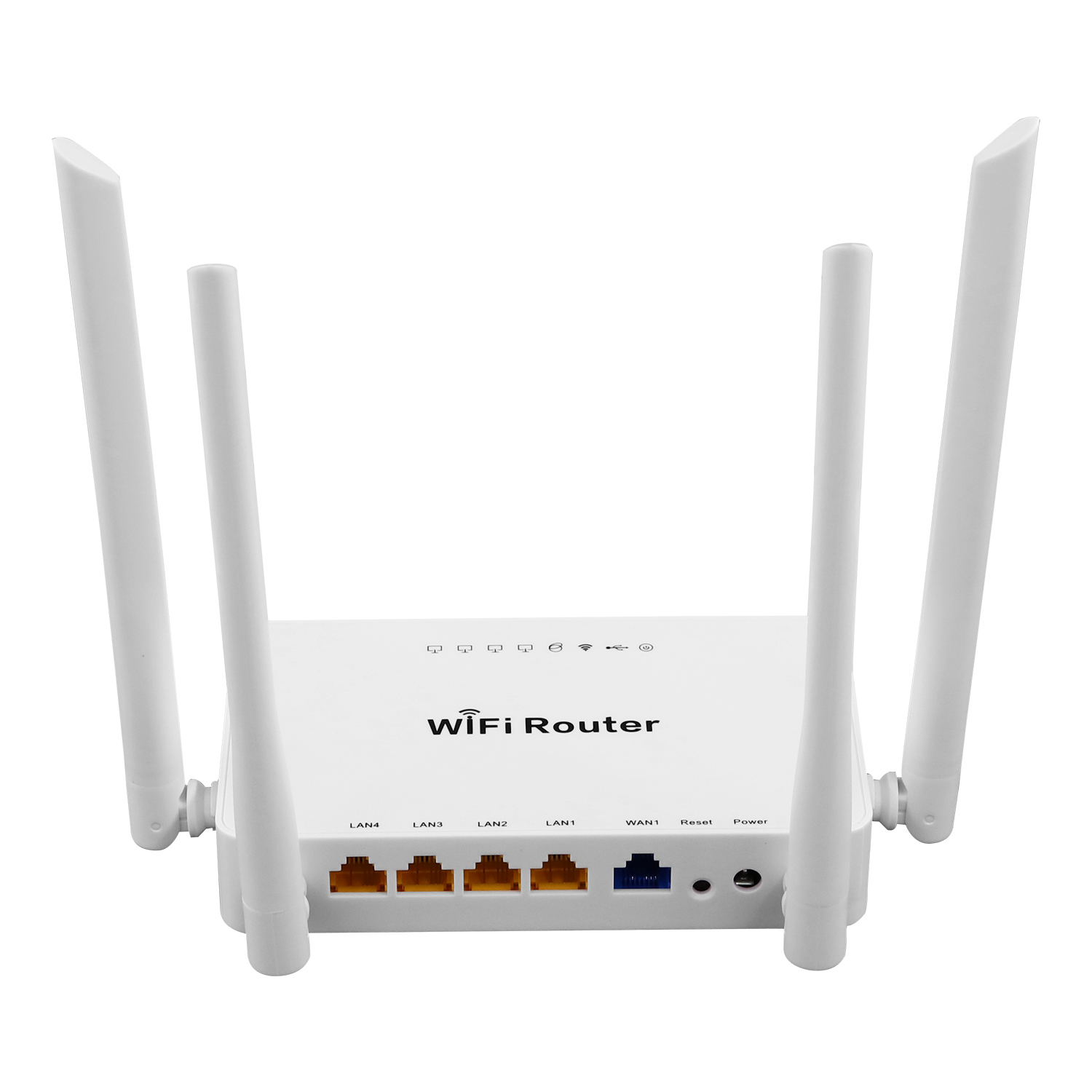

| Interface | 1*10/100M Auto-MDI/MDIX WAN port， 4*10/100M Auto-MDI/MDIX LAN port； |
| LED | power/WLAN/WAN/LAN1/LAN2/LAN3/LAN4 |
| Button | Reset |
| Max consumption | < 5W |
| Dimension
（L*W*H） |
260*245*46mm |
